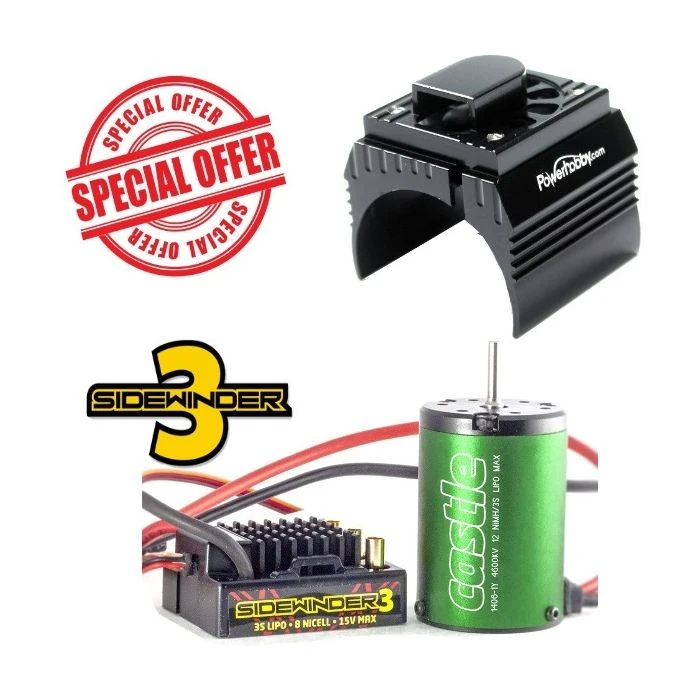

Castle Creations 1/10 WP SV3 Sidewinder ESC W/ 5700kv Motor + Cooling Fan Black

Castle Creations 1/10 WP SV3 Sidewinder ESC w/ 5700kv Motor + Cooling Fan Black

Included with Powerhobby 1/10 cooling fan

Features:

• SV3 12V ESC
• Recommended for all 1/10 scale buggy and truggy applications that weigh less than 5lbs (2.25kg) ready to run (not for use in heavier vehicles such as E-Revos or E-Maxx class vehicles)
• USB programming capability via Castle Link USB adapter (not included)
• Waterproof for use in nearly every environment (not intended for operation while submerged in liquid)
• Reversible with reverse lockout
• 1406 Series 5700kV Motor
• 540 size can replaces many stock brushed motors
• Four magnet, four pole rotor for greater torque
• 1.4″ diameter slotted stator
• Removable end bell

Includes:

• Castle SV3 Speed Control
• 1406 5700KV Motor

Specs:

ESC;

• Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
• Brake: Proportional
• Reversible: Yes, with lockout
• Dimensions: 1.93 x 1.48 x 0.79″ (49 x 38 x 20mm)
• Weight: 1.96 oz (55.5 g) with 5″ (127mm) long battery wires and no battery connector


Motor;

• kV Rating: 5700
• Can Length: 1.9″ (49mm)
• Can Diameter: 1.4″ (36mm)
• Shaft Diameter: 1/8″ (3.2mm)
• Weight: 5.9 oz (169.5 g)
• Connector: 4mm gold
• Wire Length: 9.5″ (241mm)
