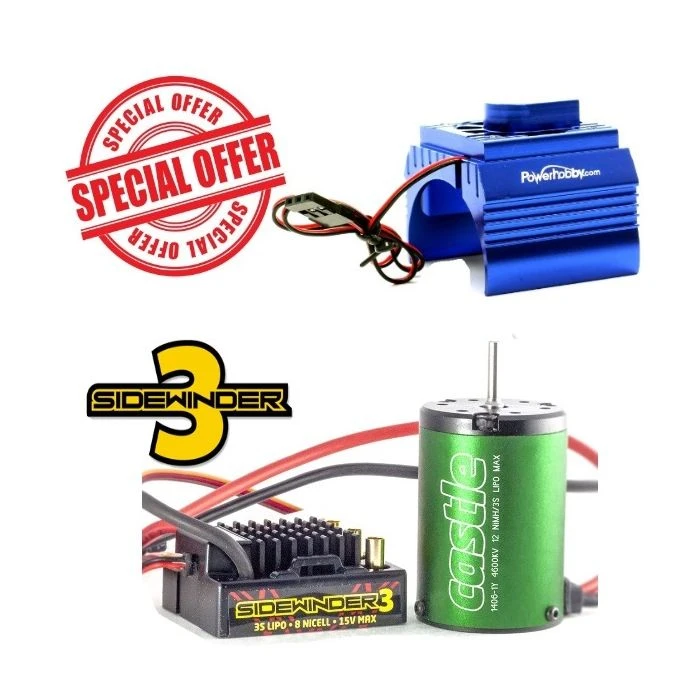

Castle Creations 1/10 WP SV3 Sidewinder ESC W/ 6900kv Motor + Cooling Fan Blue

Castle Creations 1/10 WP SV3 Sidewinder ESC w/ 6900kv Motor + Cooling Fan Blue

Included with powerhobby 1/10 scale cooling fan

Features:

•
  • SV3 12V ESC
    Recommended for all 1/10 scale buggy and truggy applications that weigh less than 5lbs (2.25kg) ready to run (not for use in heavier vehicles such as E-Revos or E-Maxx class vehicles)
    USB programming capability via Castle Link USB adapter (not included)
    Waterproof for use in nearly every environment (not intended for operation while submerged in liquid)
    Reversible with reverse lockout
    1406 Series 6900kV Motor
    540 size can replaces many stock brushed motors
    Four magnet, four pole rotor for greater torque
    1.4″ diameter slotted stator
    Removable end bell

  Includes:

  • Castle SV3 Speed Control
  • 1406 6900KV Motor

  Specs:

  ESC;

  • Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
  • Brake: Proportional
  • Reversible: Yes, with lockout
  • Dimensions: 1.93 x 1.48 x 0.79″ (49 x 38 x 20mm)
  • Weight: 1.96 oz (55.5 g) with 5″ (127mm) long battery wires and no battery connector

  Motor;

• kV Rating: 6900
• Can Length: 1.9″ (49mm)
• Can Diameter: 1.4″ (36mm)
• Shaft Diameter: 1/8″ (3.2mm)
• Weight: 5.9 oz (169.5 g)
• Connector: 4mm gold
• Wire Length: 9.5″ (241mm)
