Castle Creations 1/8 1/10 Scale Mamba Monster X Waterproof ESC System

Castle Creations 1/8 1/10 Mamba Monster X Waterproof ESC System

First, there was the Monster. Then the Monster 2. Now there’s the Monster X.

As revolutionary as it’s predecessors, the new Monster X Electronic Speed Controller (ESC) takes Castle’s legendary “monster” performance to a whole new level. The waterproof* Monster X is capable of 2S LiPo up to a maximum of 6S LiPo and is the legendary “power up” for 1/8th scale buggies, truggies and on-road vehicles as well as 1/10th scale monster trucks and R/C monstrosities weighing up to 15 lbs.

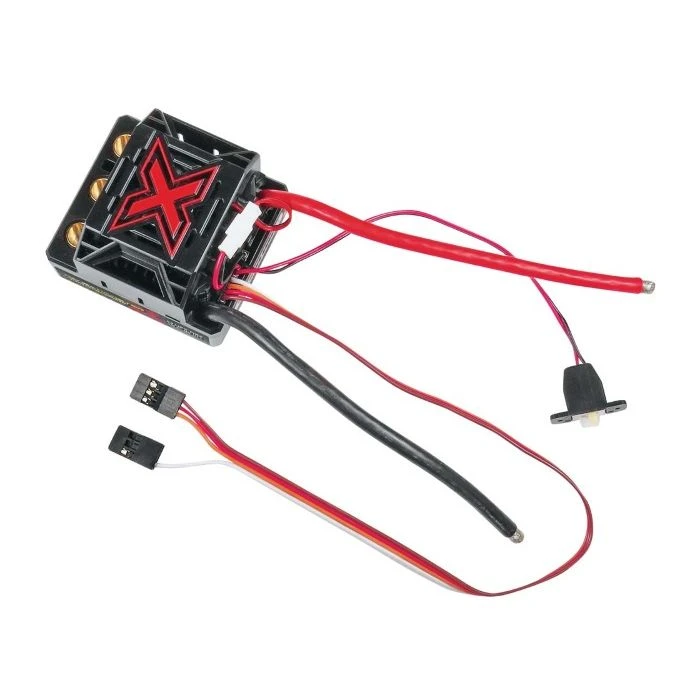

This is the Castle Creations Mamba Monster X
Waterproof Electronic Speed Control.

FEATURES

For 1/8 scale buggies, truggies and on-road vehicles, and 1/10 scale
monster trucks weighing up to 15lbs (6.8kg)
2S-6S LiPo compatible
Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V
8A Peak), default 5.5V
Castle Link Adjustable settings include;
Brake/Reverse Type
LiPo Cutoff Voltage
Brake Amount
Drag Brake
Motor Type
Programmable Auxiliary Wire (AUX) allows adjustments to several
settings such as torque control and max throttle from a compatible
transmitter
Sensored motor capable with purchase of optional (not included)
Sensor harness from Castle Creations
Telemetry ready with purchase of Castle Creations S.BUS Telemetry
Link
One year limited warranty through Castle Creations beginning at date
of purchase

INCLUDES
Castle Creations Mamba Monster X ESC with On/Off Switch, pretinned
Battery Leads, Receiver Connector, Female Motor Connectors, 30mm
Cooling Fan and Instruction Booklet

REQUIREMENTS
Compatible Motor and LiPo Battery
Battery Connectors, Castle Creations 6.5mm are recommended

SPECIFICATIONS
Input Voltage Range: Min. 2S LiPo, Max. 6S, 25.2V
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Brake: Proportional
Reversible: Yes, with lockout
On/Off Switch: Yes
Dimensions: 2.08 x 1.9″ (53 x 49mm)
Weight: 3.91oz (111.1g) with wires
