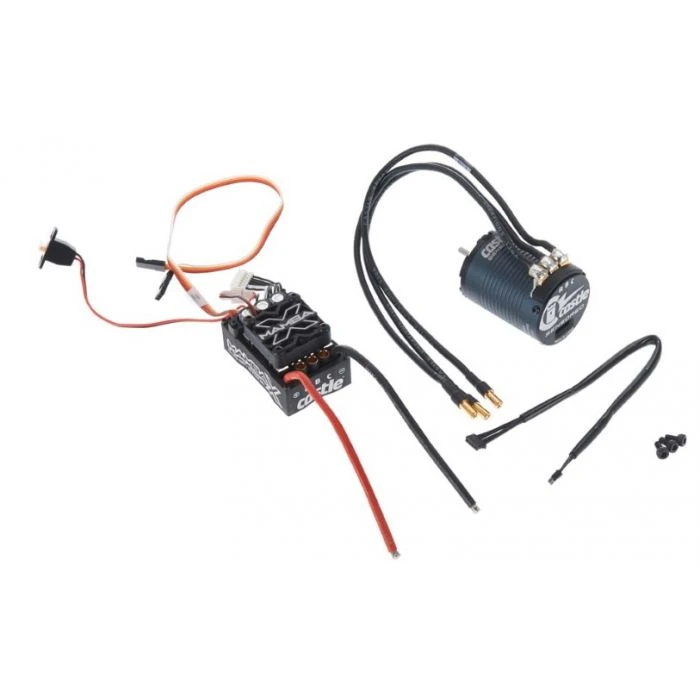

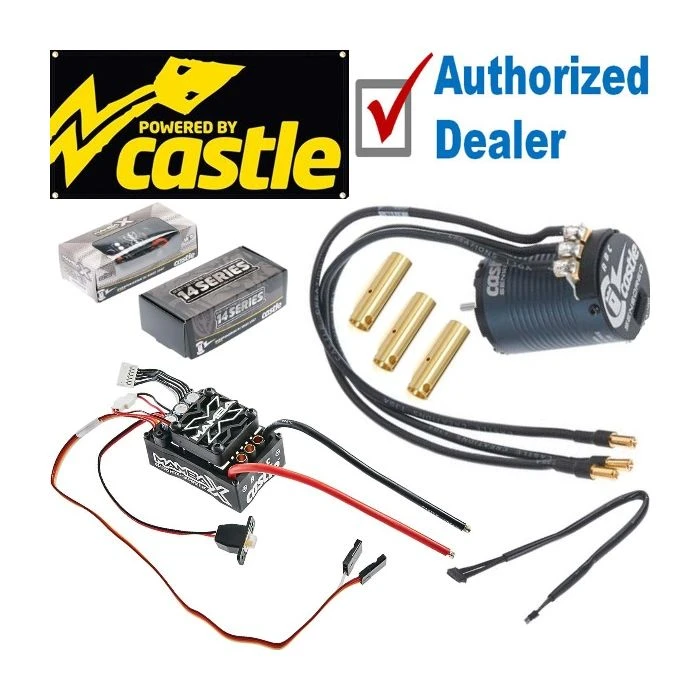

Castle Creations Castle Mamba Sensored Mamba X WP ESC + 2850kV Brushless Rock Crawler Motor Combo

Castle Creations 010-0155-10 Mamba X 25.2V WP ESC + 1406-2850kV Motor Combo

Features:
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale* Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.
ESCs have a tough life – landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.
The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled “make-it-right” customer support. Call us, email us, or walk in our front door – we’re here to help.

Features:
   Wide 2S to 6S input voltage range
    Sensored Motor Support (Castle X-Series Sensor Harness Included)
    Waterproof
    8A Adjustable BEC (5.25V-8.0V)
    Data-logging
    Rugged CNC Aluminum Case
    Castle Link Programming Support

    SmartSense™
    Integrated Capacitors
    Removable 30mm Cooling Fan
    Integrated 4mm Bullet Connectors
    12 AWG Power Wires
    Waterproof Switch
    Audible Alerts

The Mamba X has an exclusive set of features that allow you more control and flexibility than ever before:

SMARTSENSE™
Enabled by default, the Mamba X uses the motor’s sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA-EFFICIENT sensorless mode with electronic timing. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at each. Electronic timing in SMARTSENSE™ will advance timing automatically for peak performance during all driving conditions. This combines the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless running. Your motor will produce more power and less heat.
Castle Link Compatible
With the Castle Link USB Programming Kit you can use your Windows™ PC to easily program your controller. Adjustable settings include:

    Auto LiPo cutoff
    Motor direction
    Drag brake
    Reverse type
    Motor type
    Punch Control
    Brake curve
    And many more.

Additional Castle Link benefits include:
    Access to all firmware updates, including added features sets released from Castle Engineering, at no charge.
    Intuitive Demo Mode capability
    Ability to save setup profiles for later use

Specs:
Technical Specs:
Electronic Speed Control (ESC)
Input Voltage Range:     MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
BEC Specifications:     Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment:     Waterproof* design allows for use in nearly any environment.
Brake:     Proportional
Reversible:     Yes, but may be disabled for racing.
On/Off Switch:     Yes
Cooling Fan:     Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size:     Length: 2.14″ (54.4mm)
Width: 1.39″ (35.2mm)
Height: 1.18″ (30.0mm)
Weight (with wires):     3.56 oz. (101g)
Connectors:     4.0mm female bullets for motor connection.
Items Needed for Operation:     Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas Power Connectors, or Deans® Ultra Plugs are recommended.

Product Use Statements:
*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Max. Recommended Vehicle Weight:     Less than 9lbs, with batteries, ready-to-run with included 1406 – 2850kv motor in low speed crawlers; 5lbs maximum for more aggressive setups like rock racing and extended hill climbing
Programmability:     Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable:     Yes

Tech Notes:
Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack’s suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas Power Cell).
    Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
    Applying voltages higher than 25.2V will cause irreparable damage to ESC.
    We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.

Motor specs:
Input Voltage Range:     2S-3S LiPo
Kv:     2850
Max. RPM:     100,000
Size:     Length: 49.5mm
Diameter: 36mm
Weight (w/wires):     197 g / 6.9oz
Shaft Size:     Length: 15mm
Diameter: 1/8″ (3.17mm)
Optional 5mm rotor replacement available.
Mounting Hole Specifications:     M3 @ 25mm
Cooling Fan:     Optional – Coming Soon
Connectors:     4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
Application Guidelines:     Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 9lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
Max. Recommended Vehicle Weight:     9lbs when used for low speed/moderate driving style like rock crawling and trail running;
5lbs for more racing and aggressive driving styles.

Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
