Castle Creations Mamba X 1/10 WP ESC 1406 6900KV Sensored Motor W/ 3S Lipo Deans

Castle Creations Mamba X 25.2V WP ESC AND 1406-6900KV Motor Combo

Included with Powerhobby 11.1V 5200mAh 50C 3S Lipo Battery

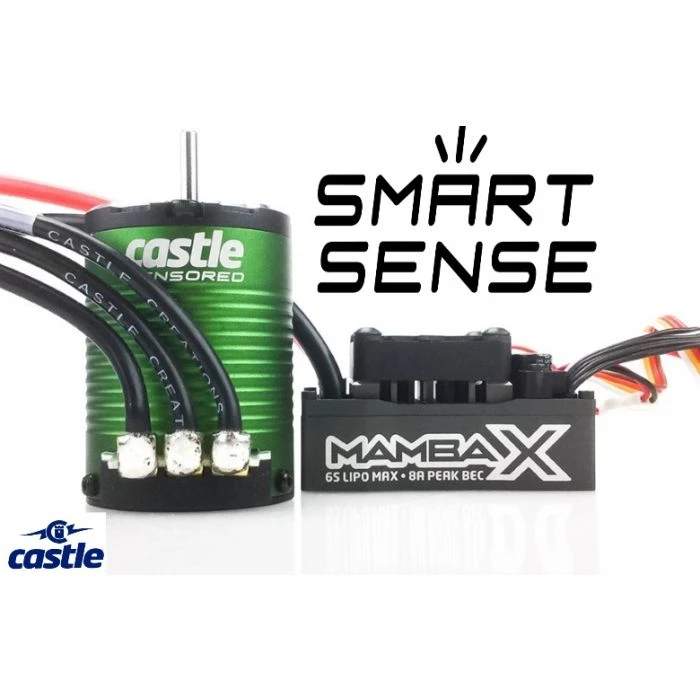

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC,
and the 1406 6900Kv Sensored Brushless Motor.

NOT for use in 2WD or 4WD short course trucks.

For 1/10 scale 2WD cars on 2S LiPos, and lighter off-road 1/10 scale
stadium trucks and buggies with conservative gearing.

FEATURES
ESC;
2S – 6S input voltage range
Compatible with 1/10 – 1/8 scale vehicles weighing less that 9lbs
(4kg), including many extreme 1/10 scale setups and 1/8 scale race
buggies
Smartsense uses motor’s sensors for smooth starts, excellent torque
and low-speed drivability – then transitions to the sensorless
mode with electronic timing, Smartsense automatically advances
timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled
in Castle Link, then settings can be tuned from transmitter while
driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires
One year limited warranty through Castle Creations beginning at date
of purchase
Motor;
High-strength neodymium sintered magnet with Kevlar wrap
High-performance 0.2mm steel lamination stacked stator
Castle 13 AWG silicone insulated wire leads
Oversized NMB bearings
Four pole configuration for maximum efficiency at high RPM
CNC machined 6061-T6 aluminum front and rear endbells

INCLUDES
Mamba X Extreme 1/10 scale Electronic Speed Control
Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,
and Waterproof Switch
Replaceable Motor Sensor Harness
12AWG Battery Wires
Cooling Fan
4mm Gold Plated Bullet Motor Connectors
1406 6900Kv Sensored Brushless Motor
Sensor Wire

SPECIFICATIONS
ESC (CSEM9500);
Input Voltage Range: 2S – 6S LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Fully programmable with Castle Link USB Adapter, and
downloadable Casle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, may be disabled for racing
Cooling Fan: 1.2″ (30mm) removable
Dimensions: 2.14 x 1.39 x 1.18″ (54.4 x 35.2 x 30mm)
Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
run
Motor (CSEC5800);
Input Voltage Range: 2-3S LiPo,
Kv: 6900
Max. RPM: 100,000
Max. Recommended Vehicle Weight: 4lbs (1814g) with battery RTR
Length: 1.9″ (49.5mm)
Diameter: 1.4″ (36mm)
Weight with Wires: 6.8oz (193g)
Shaft Diameter: 1/8″ (3.17mm)
Shaft Length: 0.59″ (15mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm Male Castle Bullet

COMMENTS
Waterproof under normal operation. Not intended for operation when
completely submerged in water.
