Castle Creations Mamba X 1/10 WP ESC 4600KV Sensored Motor W/ 2x 3S Lipo Deans

Castle Creations 010-0155-01 Mamba X 25.2V WP ESC & 1406-4600KV Motor Combo

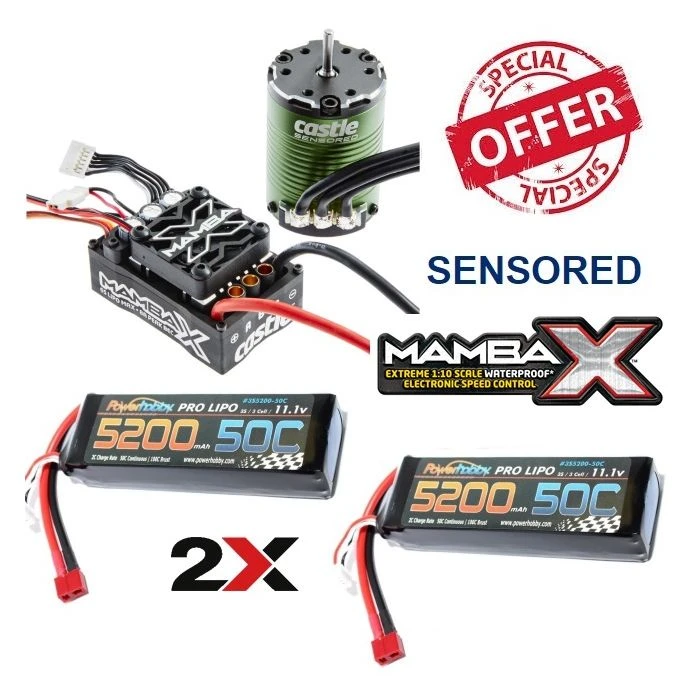

Included with 2x Powerhobby 11.1V 5200mAh 50C 3S Lipo Battery

Meet the next generation.
Castle Creations is proud to announce our new flagship surface product, the MAMBA X EXTREME 1:10 SCALE WATERPROOF ESC. We at Castle wanted to address three main concepts while designing a new ESC for the modern day RC enthusiast; VERSATILITY, RELIABILITY, and PERFORMANCE. These are the pillars of the Mamba X design and the driving forces behind the feature-packed controller
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.
With the included 1406 – 4600kv sensored motor, this combo is great for 2WD short course trucks on 2s LiPo and geared conservatively; 1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing and for 1/10th scale on-road cars for 2s and 3s use. NOT for use in 4WD short course trucks.
ESCs have a tough life – landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.
The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled “make-it-right” customer support. Call us, email us, or walk in our front door – we’re here to help.

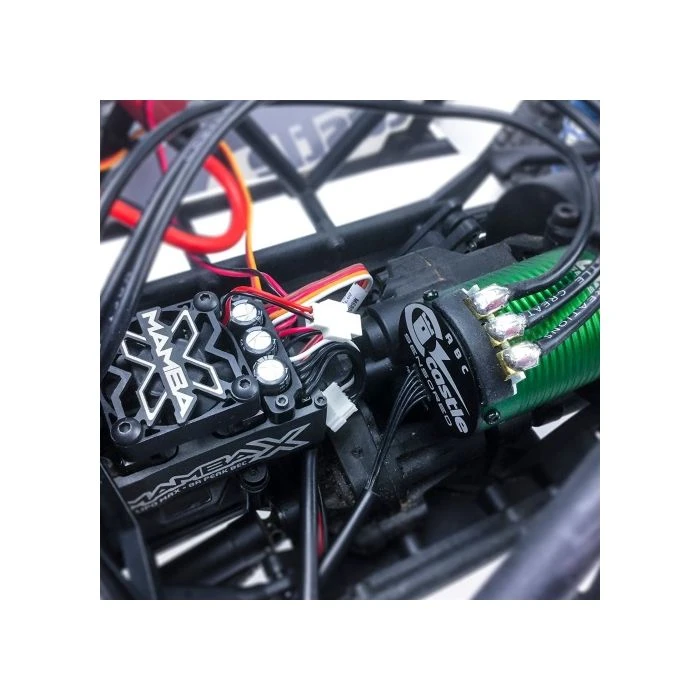

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC,
and the 1406 4600Kv Sensored Brushless Motor.

NOT for use in 4WD short course trucks.
For 2WD short course trucks on 2S LiPos geared conservatively,
1/10 scale 2WD stadium trucks and buggies on 2S for bashing and
limited runs on 3S LiPos with conservative gearing, also ideal for
1/10 scale on road cars running on 2S and 3S LiPo power.

FEATURES
ESC;
2S – 6S input voltage range
Compatible with 1/10 – 1/8 scale vehicles weighing less than 9lbs
(4kg), including many extreme 1/10 scale setups and 1/8 scale race
buggies

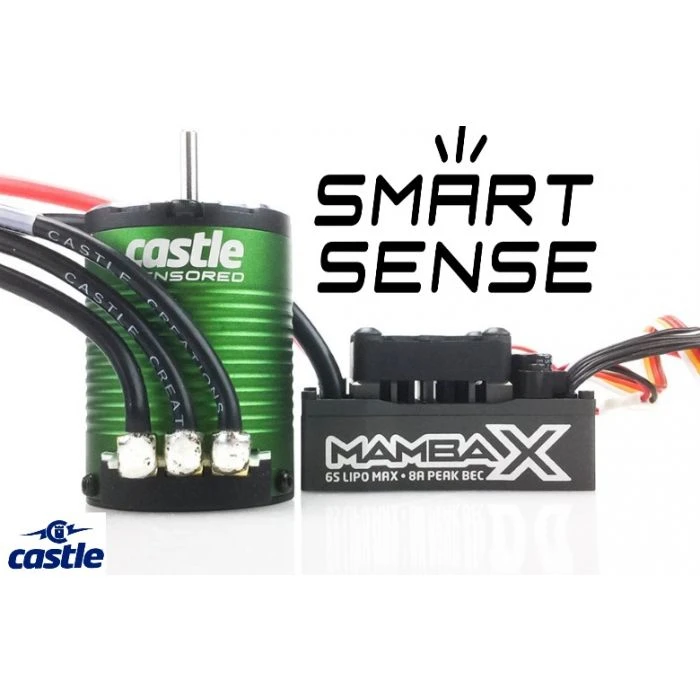

Smartsense uses motor’s sensors for smooth starts, excellent torque
and low-speed drivability – then transitions to the sensorless
mode with electronic timing, Smartsense automatically advances
timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled
in Castle Link, then settings can be tuned from transmitter while
driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires
One year limited warranty through Castle Creations beginning at date
of purchase

Motor;
High-strength neodymium sintered magnet with Kevlar wrap
High-performance 0.2mm steel lamination stacked stator
Castle 13 AWG silicone insulated wire leads
Oversized NMB bearings
Four pole configuration for maximum efficiency at high RPM
CNC machined 6061-T6 aluminum front and rear endbells

INCLUDES
Mamba X Extreme 1/10 scale Electronic Speed Control
Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,
and Waterproof Switch
Replaceable Motor Sensor Harness
12AWG Battery Wires
Cooling Fan
4mm Gold Plated Bullet Motor Connectors
1406 4600Kv Sensored Brushless Motor
Sensor Wire

SPECIFICATIONS
ESC (CSEM9500);
Input Voltage Range: 2S – 6S LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Fully programmable with Castle Link USB Adapter, and
downloadable Casle Link Windows software
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, may be disabled for racing
Cooling Fan: 1.2″ (30mm) removable
Dimensions: 2.14 x 1.39 x 1.18″ (54.4 x 35.2 x 30mm)
Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
run
Motor (CSEC5600);
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Max. Recommended Vehicle Weight: 5lbs (2278g) with battery RTR
Length: 1.9″ (49.5mm)
Diameter: 1.4″ (36mm)
Weight with Wires: 6.9oz (197g)
Shaft Diameter: 1/8″ (3.17mm)
Shaft Length: 0.59″ (15mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm Male Castle Bullet

COMMENTS
Waterproof under normal operation. Not intended for operation when
completely submerged in water.
