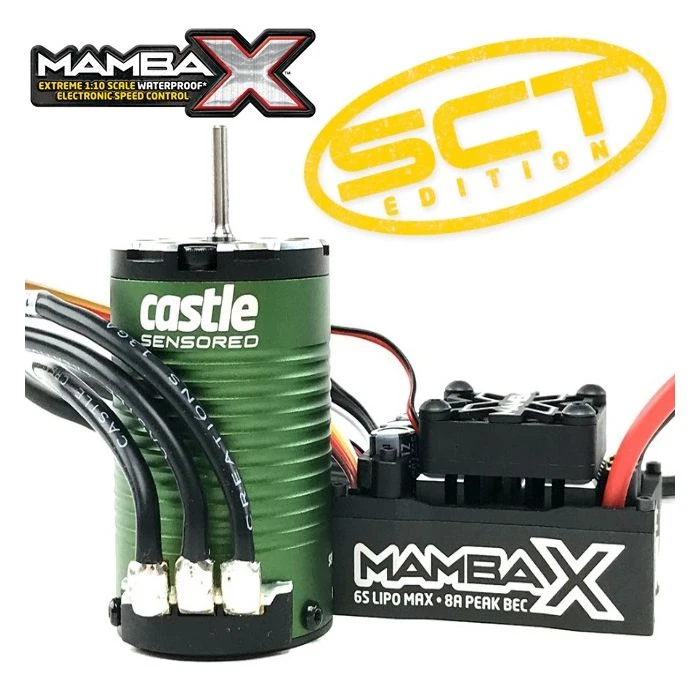

Castle Creations Mamba X SCT Pro ESC + 1410 3800kV Sensored BL Motor COMBO

Castle Creations Mamba X SCT Pro ESC / 1410-3800kV Motor Combo 010-0161-00

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC,
with the 1410 3800Kv Brushless Motor.
**Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs**
**using 2S LiPo power, and stadium trucks up to 4lbs using 2-3S LiPo power.**

FEATURES
ESC;
2S – 6S input voltage range
Smartsense uses motor’s sensors for smooth starts, excellent torque
and low-speed drivability – then transitions to the sensorless
mode with electronic timing, Smartsense automatically advances
timing for peak performance during all driving conditions
On-the-fly adjustments can be made through the AUX wire once enabled
in Castle Link, then settings can be tuned from transmitter while
driving
Recordable real-time data such as RPM, battery current and voltage,
ESC and motor temperature, throttle input and more
Audible alerts
CNC aluminum case
12AWG high strand count silicone insulated battery wires
One year limited warranty through Castle Creations beginning at date
of purchase
Motor;
High-strength 180°C grade neodymium sintered magnets with high-
strength wrap
High-temperature, high purity copper windings
High-performance 0.2mm steel lamination stacked stator
Vibration dampening wave spring on shaft
Rotor position sensor eliminates cogging and inconsistency during
startup
CNC machined 6061 T-6 aluminum endbells and motor can
13AWG high strand count silicone insulated wires with 4mm male bullet
connectors
Four pole configuration for maximum efficiency at high RPM
ROAR standard sensor port and labeled connections
Replaceable front end bell/bearing assembly and rotor/shaft assembly

INCLUDES

• Mamba X Extreme 1/10 scale Electronic Speed Control
• Replaceable Wire Harness with Receiver Wire, AUX Wire, Fan Connector,
• and Waterproof Switch
• Replaceable Motor Sensor Harness
• 12AWG Battery Wires
• Cooling Fan
• 4mm Gold Plated Male and Female Bullet Motor Connectors
• 1410 1Y 3800Kv 4-Pole Sensored Brushless Motor,
• Sensor Wire
• Three 3x5mm Socket Head Cap Screws

SPECIFICATIONS

ESC, CSEM9500

• Input Voltage Range: 2S – 6S LiPo
• BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Programmable: Fully programmable with Castle Link USB Adapter, and
• downloadable Castle Link Windows software
• Telemetry Link Capable: Yes
• Brake: Proportional
• Reverse: Yes, may be disabled for racing
• Cooling Fan: 1.2″ (30mm) removable
• Dimensions: 2.14 x 1.39 x 1.18″ (54.4 x 35.2 x 30mm)
• Max Recommended Vehicle Weight: 9lbs (4kg) with batteries, ready to
• run

Motor; CSEC0065

• Input Voltage Range: 2-3S LiPo
• Kv: 3800
• Max RPM: 100,000
• Length: 2.1″ (52.7mm)
• Diameter: 1.4″ (36mm)
• Shaft Diameter: 1/8″ (3.17mm)
• Shaft Length: 0.61″ (15.5mm)
• Weight: 8.4oz (237g)
• Mounting Hole Size: M3 @ 25mm
