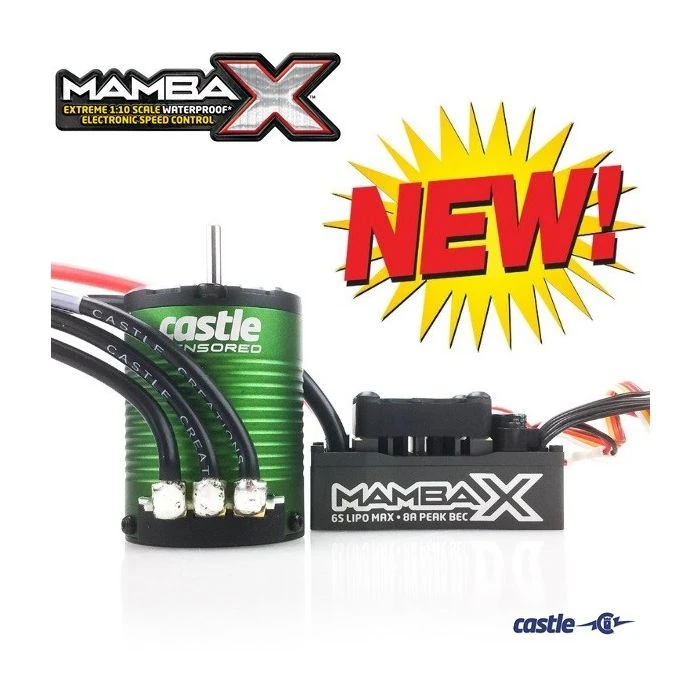

Castle Creations Mamba X SCT Pro Sensored ESC / 1410 3800kV 5mm Motor Combo

Castle Creations 010-0161-01 Mamba X SCT Pro ESC/ Motor 1410-3800kV 5mm Combo

Features:
The Mamba X is extremely versatile, capable of powering a wide variety of applications ranging from 2S to 6S and vehicles ranging from 1/10th scale to 1/8th scale*. Whether you are racing at the track with your 2wd buggy, bashing through puddles and mud in your SCT or monster truck, or navigating a hardcore crawling excursion, this controller raises the bar to a whole new level.

This is the ideal setup for 1:10 scale 2WD and 4WD SCT up to 6.5lb running on 2S LiPo as well as 1:10 scale buggies and stadium trucks up to 4lbs on 2S-3S LiPo with the included 1410 – 3800kv sensored motor.

ESCs have a tough life – landing extreme jumps, experiencing accidental collisions, and splashing through the occasional puddle. As R/C enthusiast themselves, Castle engineers understand this and designed the Mamba X to endure these situations and power through them. It is housed in a rugged CNC-machined aluminum case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.

The high performance Mamba X includes an integrated and powerful 8A adjustable BEC and can push the most extreme 1/10th scale setups and 1/8th scale* race buggies. SmartSense™ allows you to take advantage of smooth, cog-free, and predictable sensored starts, and Castle’s new and improved throttle response keeps you ahead of the competition.

The Mamba X is proudly designed and manufactured in Olathe, Kansas and is backed by Castle Creations’ 1-year warranty and unparalleled “make-it-right” customer support. Call us, email us, or walk in our front door – we’re here to help.

Features:

Wide 2S to 6S input voltage range
Sensored Motor Support (Castle X-Series Sensor Harness Included)
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
SmartSense™
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts

Specification:
ESC Technical Specs
Input Voltage Range: MIN: 2S LiPo
MAX: 6S LiPo (25.2V)
(3s maximum with included 1410 – 3800kv motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable** (see Product Use Statements below)
Size: Length: 2.14″ (54.4mm)
Width: 1.39″ (35.2mm)
Height: 1.18″ (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection.
Items Needed for Operation: Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended.
Product Use Statements:
*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. T Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight: Up to 6.5lbs with included 1410 – 3800kv sensored motor.
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: Yes
Tech Notes:
Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack’s suitability for a brushless application. Recommended battery capacity for 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs.
Motor Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 3800
Max. RPM: 100,000
Size: Length: 52.7mm
Diameter: 36mm
Weight (w/wires): 237g / 8.4oz
Shaft Size: Length: 21mm
Diameter: 0.197″ (5mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: Ideal for 1:10 scale 2WD and 4WD SCT up to 6.5lb (2S) as well as 1:10 scale buggies and stadium trucks up to 4lbs (2S-3S).
Recommended ESC(s): Combo includes Mamba X ESC.
Max. Recommended Vehicle Weight: See application guidelines
Tech Notes:
Running modes: SMARTSENSE™, Sensored, Sensorless

Resources
Mamba X Driver’s Ed Guide
Mamba X Quick Start Guide
Sensored Motor Quick Start
1/10th scale gearing chart
