Castle Creations Monster X 25.2V ESC 1512-2650kV Motor Combo W/ Cooling Fan Red

Castle Creations Monster X 25.2V ESC 1512-2650kV Motor Combo w/ Cooling Fan Red

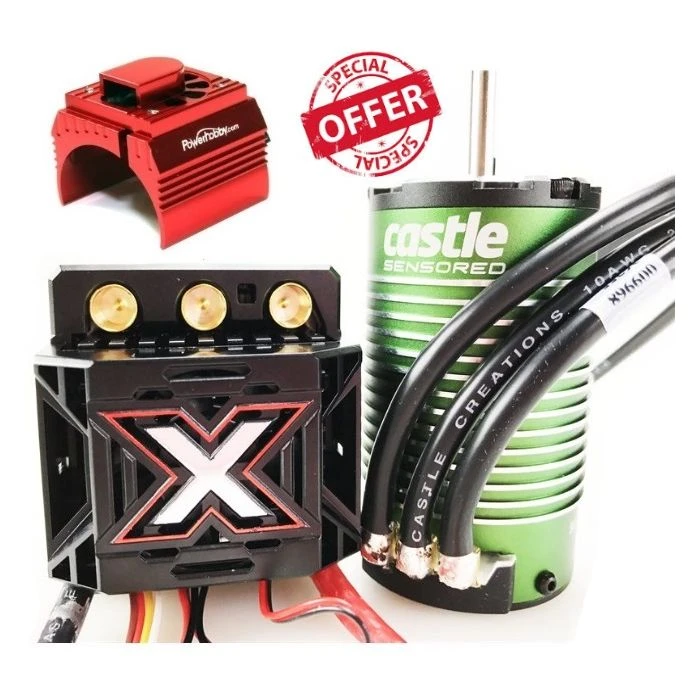

Included with powerhobby Motor Cooling fan

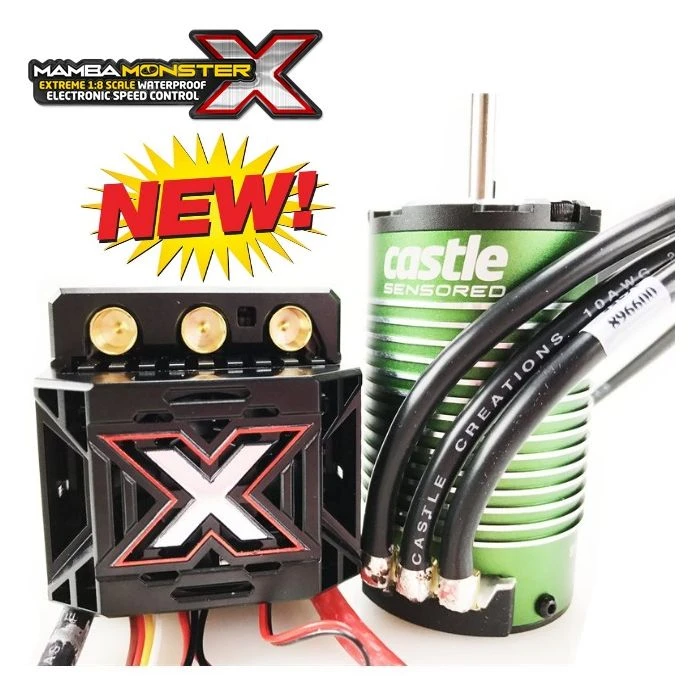

This is the Castle Creations Mamba Monster X Waterproof
Electronic Speed Control and the 1512 1Y 2650Kv Sensored Brushless Motor.

FEATURES
ESC; CSEM4500
For 1/8 scale buggies, truggies and on-road vehicles, and 1/10 scale
monster trucks weighing up to 15lbs (6.8kg)
2S-6S LiPo compatible
Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V
8A Peak), default 5.5V
Profiles can be custom designed on a PC with the Castle Link
PC programming software (software not included, can be
downloaded for free from Castle’s website, voucher is included for
free Castle Link Programmer)
Castle Link Adjustable settings include;
Brake/Reverse Type
LiPo Cutoff Voltage
Brake Amount
Drag Brake
Motor Type
Programmable Auxiliary Wire (AUX) allows adjustments to several
settings such as torque control and max throttle from a compatible
transmitter
Sensored motor capable with purchase of optional (not included)
Sensor harness from Castle Creations
Telemetry ready with purchase of Castle Creations S.BUS Telemetry
Link
One year limited warranty through Castle Creations on both components
beginning at date of purchase
Motor; CSEC6100
Ideal for 1/8 scale off-road and on-road vehicles, and 1/10 scale
4WD short course trucks up to 9lbs (4082g)
High strength neodymium sintered magnets with high strength Kevlar
wrap
High performance 0.2mm steel laminated stacked stator
Four pole configuration for maximum efficiency at high RPM
Vibration dampening wave spring
High-temperature, high purity copper windings
CNC machined 6061-T6 anodized aluminum can and endbells
Hardened stainless steel shaft
Low resistance gold-plated solder tabs
10AWG high strand count insulated wire with 6.5mm femal bullet
connectors
Sensor board with temperature stabilized sensors

INCLUDES
Castle Creations Mamba Monster X ESC with On/Off Switch, pretinned
Battery Leads, Receiver Connector, Female Motor Connectors, 30mm
Cooling Fan
1512 1Y 2650Kv Sensored Brushless Motor with Sensor Wire and three
6.5mm Female Connectors

SPECIFICATIONS
ESC;
Input Voltage Range: Min. 2S LiPo, Max. 6S, 25.2V
BEC Specifications: Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
Brake: Proportional
Reversible: Yes, with lockout
On/Off Switch: Yes
Dimensions: 2.08 x 1.9″ (53 x 49mm)
Weight: 3.91oz (111.1g) with wires
Motor;
Input Voltage Range: 2-4S LiPo
Kv: 2650
Max. RPM: 60,000
Max. Recommended Vehicle Weight: 9lbs (4082g) with battery RTR
Length: 2.7″ (67.7mm)
Diameter: 1.6″ (41.4mm) with fins
Weight with Wires: 13.6oz (385g)
Shaft Diameter: 0.196″ (5mm)
Shaft Length: 0.79″ (20mm)
Mounting Hole Specifications: M3 and M4 @ 25mm
Connectors: 6.5mm Male Castle Bullet

COMMENTS
Not intended for operation while submerged in liquid. If ESC is
operated in wet conditions, rinse with fresh water to remove
dirt or corrosives, then fully dry unit. Cooling fan is not
waterproof and must be removed prior to driving in wet conditions.
