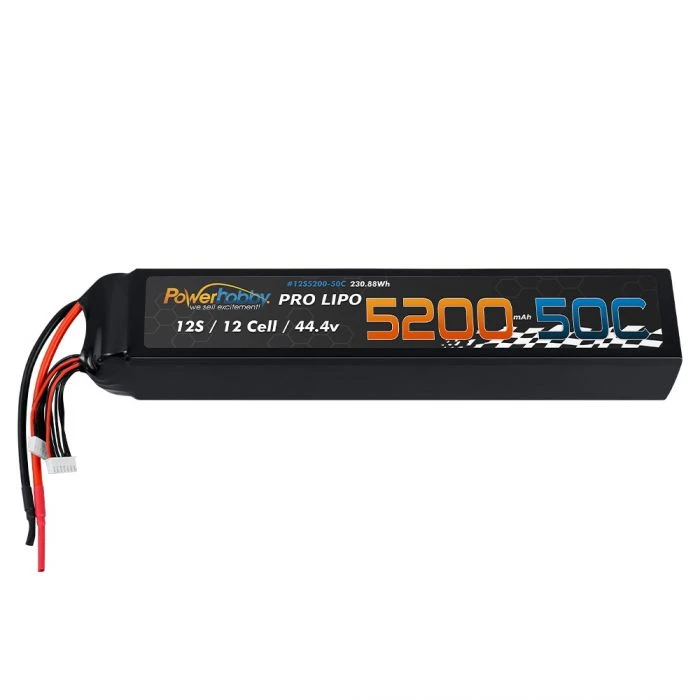

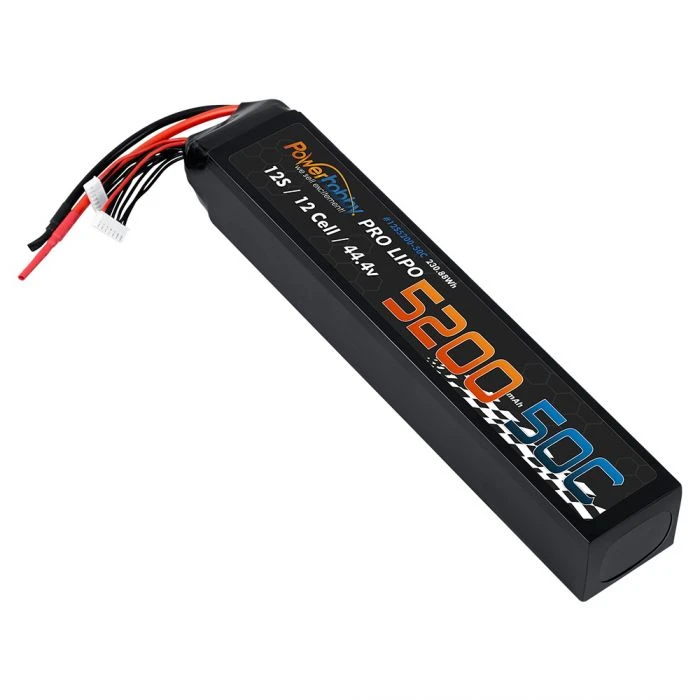

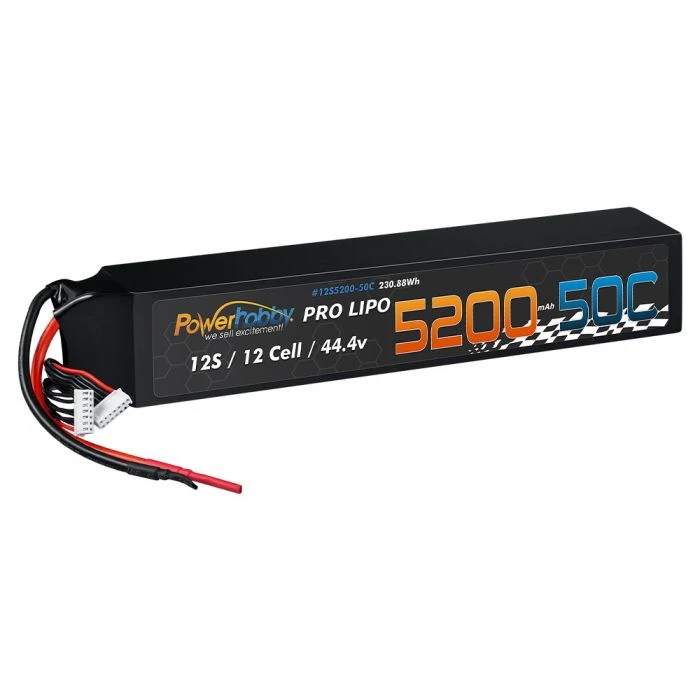

Powerhobby 12S 44.4V 5200mah 50c Lipo Battery FOR 700-800 Heli / Helicopter

Powerhobby 12S 44.4V 5200mah 50c Lipo Battery FOR 700-800 Heli / Helicopter

50C Constant / 100C Burst

perfect for : 700-800 Size helicopter

12S 44.4V Wiring Setup:

Use a bullet style connector (male and female) to join the two (2) yellow wires – one male, and one female. This connector should be 5mm or larger, which allows the pack to be broken into two 6S packs for charging.

For the positive / negative (red & black) wires, these will solder to a standard connector of your choice. Once soldering is complete, the (2) yellow wires can be joined together, which will tie both packs into (1) 12S 44.4 battery, outputting 12S 44.4V power via the connector attached to the positive / negative (red & black) wires. This setup negates the need for a series connector. You will need to make a custom charge lead for each 6S pack to allow each 6S battery to be charged independently.

Be extremely careful with polarity! Polarity reversals can cause serious damage to the battery, and can inflict serious harm – any such polarity reversals are NOT covered under warranty, and all such battery setups are the sole responsibility for the end user.

Alternative Wiring – (2) 6S 22.2V Setup:

Solder connectors of your choice to (1) yellow wire, and (1) black wire, and solder another connector to the yellow & red wire. Be extremely careful with polarity! With this option, you will need to use a series connector to link both battery packs into a 12S 44.4V battery setup. However, charging is simplified, as each 6S pack is easily charged using standard charge leads and balance tabs.

Specs:

Application(s): Heli
Capacity: 5200mah
Voltage: 44.4v
Discharge Rate: 50C Constant / 100C Burst
Lenth : 325 mm
Width : 46mm
Height : 52.5mm
Weight : 56 .5Ounces

Includes : 1 Battery

Warranty:

This LiPo Battery Pack is guaranteed, under warranty, against defects in materials and workmanship upto 6 Months from the day of purchase
•This warranty does not cover physical damage to the battery pack as the result of a crash, hard landing, improper
mounting or any deformity caused by the user.
•This warranty does not cover internal damage to the battery pack due to overcharging, deep discharging, or excessive
discharge current.
