Traxxas 2869X LiPo Battery 2S 7.4V 7600mAh 25C W/iD Connector Desert Racer

Traxxas 2869X LiPo Battery 2S 7.4V 7600mAh 25C w/iD Connector

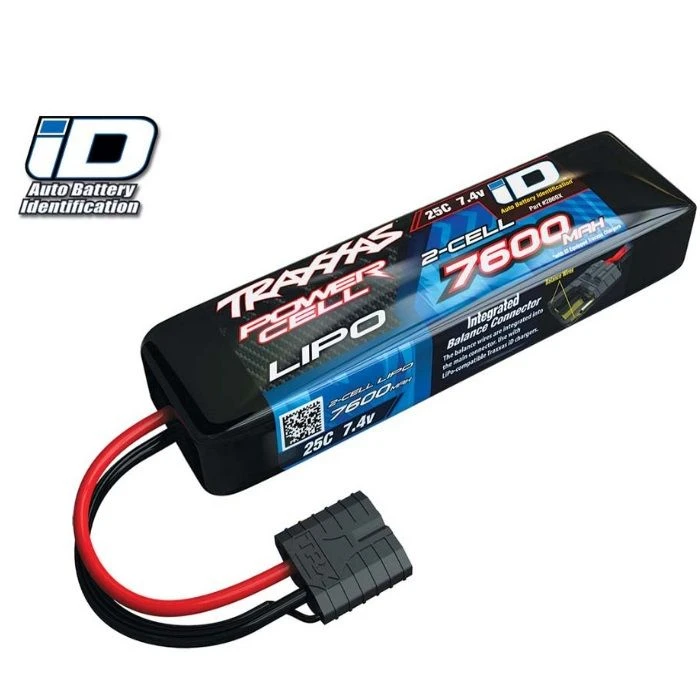

This is the Traxxas Power Cell 7.4V 7600mAh 25C 2S LiPo Battery
with iD Connector.

FEATURES
Semi rigid construction does not require a hard case and eliminates
wire harness connectors that can loosen and fail
Engineered specifically to fit Traxxas models
iD Auto Battery Identification allows Traxxas iD equipped chargers to
automatically set and optimize charge settings for specific battery
MAXX cable high-efficiency 12 gauge silicone jacketed wire

INCLUDES
Traxxas Power Cell 7.4V 7600mAh 25C LiPo 2S Battery with iD
Connector and Integrated Balance Connector

REQUIREMENTS
Balancer and LiPo compatible charger such as the Traxxas AC Powered
EZ-Peak Plus Battery Charger, TRAP2970
LiPo charging bag

SPECIFICATIONS
Configuration: 2S2P
Continuous Discharge: 25C (190A)
Max Burst Rate: 50C (380A)
Watt Hours: 56.24
Charge Rate: 1C (7.6A)
Max Charge Rate: 2C (15.2A)
Dimensions: 6.1 x 0.98 x 1.8″ (155 x 25 x 45mm)
Weight: 13.2oz (375g)

COMMENTS
ALWAYS use a LiPo-approved Charger
ALWAYS use a LiPo Cell Balancer
NEVER Charge over 4.20V per cell
NEVER Charge at currents greater than 1C
NEVER Trickle Charge
NEVER allow to Discharge below 2.5V per cell
NEVER disassemble or modify pack wiring in any way or puncture cells
NEVER place on combustible materials or leave unattended during
charging
ALWAYS Charge in a fireproof location
ALWAYS set charger’s output volts to match battery volts
ALWAYS keep out of reach of children
